A rheostat is a type of variable resistor that allows you to adjust the current or voltage in an electric circuit. Let’s delve into the details:

1. Definition: A rheostat can vary the resistance in an electric circuit by changing the position of a contact point along a resistive element. The resistive element can be made of materials like metal wire, carbon rod, or even a liquid solution.




   Construction and Types:

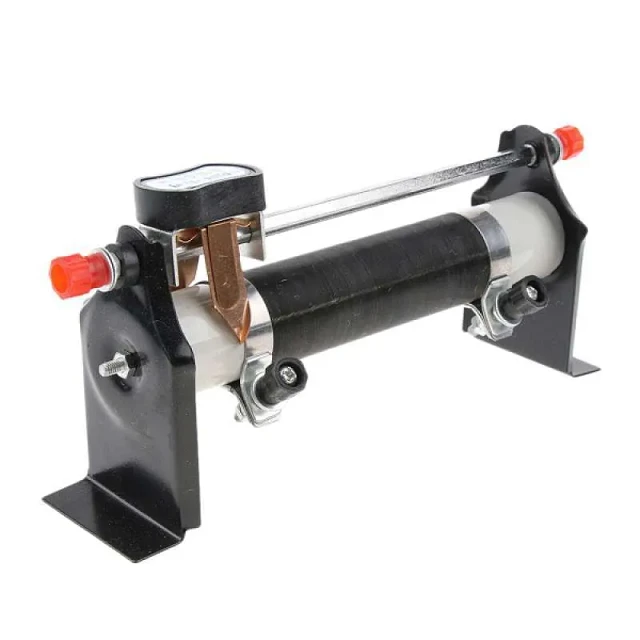

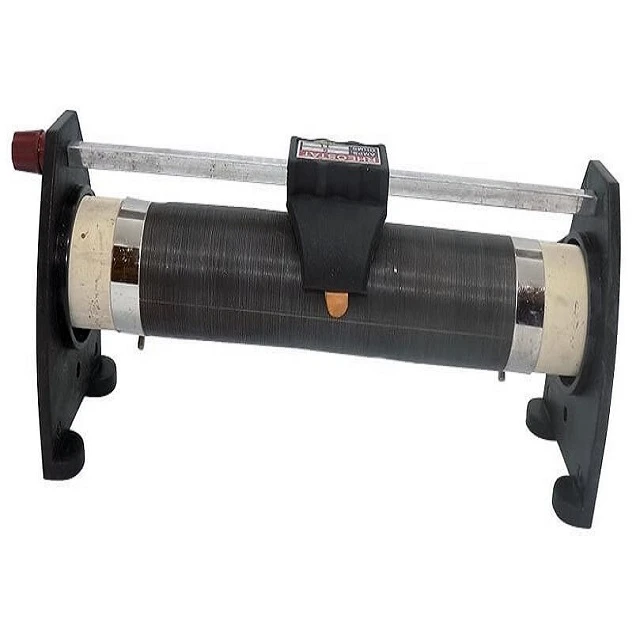

   • Wire-Wound Rheostats: These are constructed by winding a long wire of high-resistivity material around an insulating core (such as ceramic or plastic). The wire can be coiled in a spiral or helical shape. A sliding terminal or rotating knob moves along the wire to change the resistance. Wire-wound rheostats are suitable for high currents and low voltages.
   • Carbon Rheostats: These use a carbon rod or plate as the resistive element. A wiper arm moves along the carbon surface to adjust the resistance. Carbon rheostats are suitable for low currents and high voltages.
   • Liquid Rheostats: These employ a conducting liquid solution (such as saltwater or acid) as the resistive element. Two electrodes immersed in the liquid are connected to the power source and the load. By varying the distance between the electrodes, the resistance changes
